Overview
-

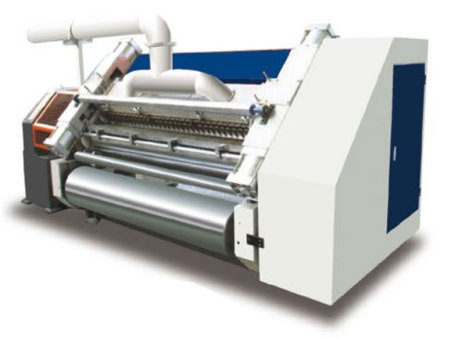

Fingerless adsorption single facer
产品介绍
SF-280S 吸附式单面瓦楞机
Fingerless adsorption single facer
用途与特点：
1. 设计速度：100m/min。
2. 有效幅宽：1400mm-1800mm。
3. 楞 辊：φ280mm。
4. 驱动减速箱采用侵油润滑，减小噪音，万向节传动，隔离动力源。
5. 上瓦辊、压力辊、涂胶辊升降，均以气动控制。
6. 导纸方式采用真空吸附，带风量调节装置，保持高速状态下瓦楞楞
型的稳定。
7. 瓦辊、压力辊轴承采用耐高温润滑脂润滑。
8. 涂胶部采用自动循环供胶。
9. 上下瓦楞辊采用48CrMo优 质铬铝合金钢，经过热处理，硬度在
HRC58o-60o表面经研磨。
10. 涂胶辊表面经过网纹刻花及镀铬处理。
11. 手动或电动隔胶装置。
12. 涂胶部停机可独立运转或不独立运转两种方式，主机电变频控制
（选装）。
Use and Characteristics:
1. Design speed: 100m/min.
2. Effective width: 1400mm- 1800mm.
3. Corrugated roller: φ 280mm.
4. The driving reducer adopts oil penetration lubrication,
reducing noise, universal joint drive and isolating
power source.
5. Upper roller, pressure roller and rubber roller lift, all
with pneumatic control.
6. The guide paper adopts vacuum adsorption, with air
volume adjustment device, to maintain the stability of
corrugated type in high speed.
7. The roller and pressure roller bearings are lubricated
with high temperature resistance grease.
Use and Characteristics:
8. The gelatinize part adopts automatic circulation for glue.
9. The upper and lower corrugated roller adopts 48CrMo high quality chromium
aluminum alloy steel, after heat treatment, the hardness is grinding on the
surface of hrc58o-60o.
10. The surface of the rubber roller has been treated with the mesh cut and chrome
plating.
11. Manual or electric separation device.
12. The machine can operate independently or without independent operation, and
the main power converter control (optional).
